Excluder 5

A double-acting O-Ring energized scraper which prevents the ingress of mud or other contaminants, increasing effective system service life. It has a secondary sealing capability for use with back pumping performance seals such as Stepseal 2K and Rimseal. It is ideal for heavy duty mobile hydraulics applications. Primarily available in Turcon® or Zurcon® materials.

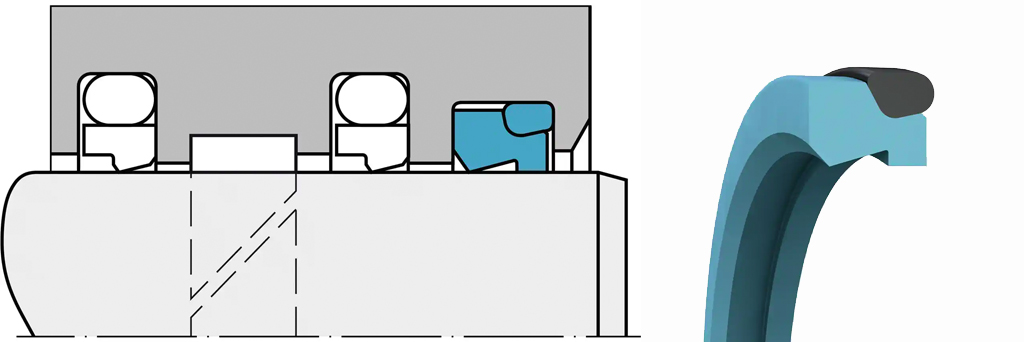

ast sealing excluder 5
Technical Details
Ø - Range Temp. range Velocity
20 - 2.600 mm
0.787 - 102 in
-45 ° C + 200 ° C
-50 ° F + 390 ° F
15 m/s
50 ft/sn
Catalogs
Document name Download
Excluder 5 (EN) Download
