Oil Seals

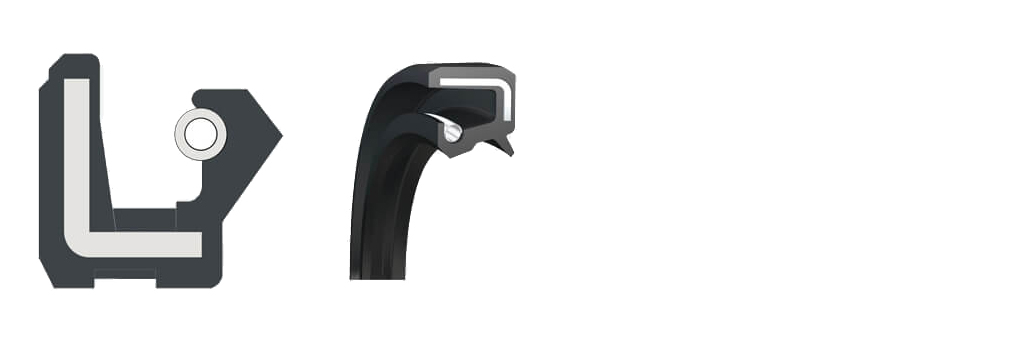

Oil Seals, also known as radial oil seals, radial shaft seals or rotary shaft lip seals, are round sealing devices used to seal between two machine parts that rotate relative to each other. They are used to seal lubrication in and/or contamination out, or to separate dissimilar media. They are self-retaining in an open groove according to ISO 6194 and DIN 3760. Versions for grease applications, use as a scraper or helical motion come with no spring.

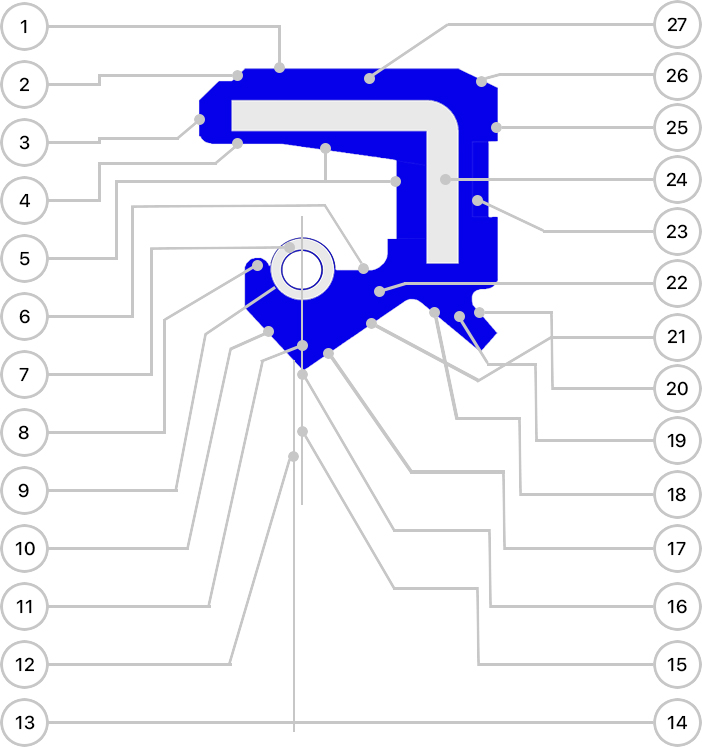

- 1. Outer surface
- 2. Front chamfer
- 3.Front surface
- 4. Coating
- 5. Fixing / Fixing
- 6. Diaphragm surface (outer)
- 7. Sagittarius
- 8.Spring lip
- 9.Spring channel
- 10. Contact surface (front surface)
- 11. Scraper lip
- 12. Sealing edge
- 13. Front surface
- 14. Backside
- 15. Spring Line
- 16. Sealing edge
- 17. Contact surface
- 18. Dust lip surface
- 19. Powder lip
- 20. Dust lip surface (Back side)
- 21. Diaphragm surface (inner)
- 22. Diaphragms
- 23.Dorsal side
- 24.Metal support
- 25. Back surface
- 26. Back chamfer
- 27. Outer covering
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 4 - 1,800 mm 0.157 - 71 in |
1 MPa 145 psi psi |
-40 ° C + 200 ° C -40 ° F + 390 ° F |
30 m / s 100 ft / sn |
Catalogs
| Document Name | Downloads |
|---|---|
| Oil Seals (EN) | Download |
