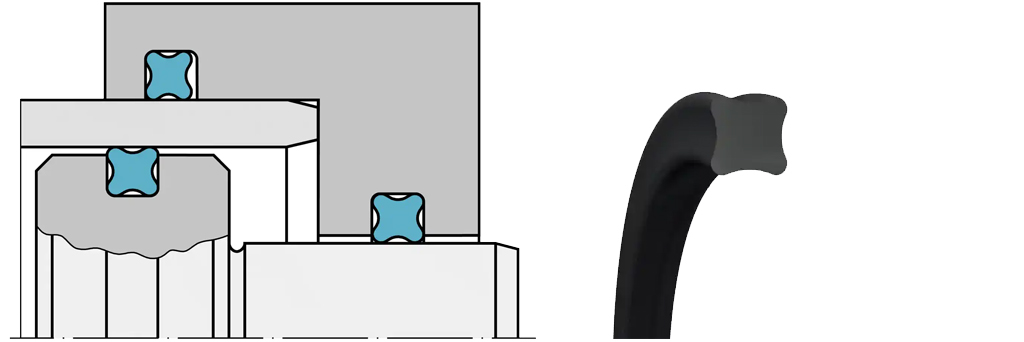

X-Ring
A double-acting four-lip seal for static and dynamic applications. Available in a wide range of elastomer compounds. Provides higher seal efficiency and lower friction than conventional O-Rings. Available as nitrile (NBR) and fluorocarbon (FKM).
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 1 - 660 mm 0.039-26 in |
40 MPa 5800 psi |
-30°C +200°C -20°F +390°F |
0.5 m/s (up to 2 m/s rotary) m/s 1.6 ft/s (up to 6.5 ft/s rotary) ft/s |
Catalogs
| Document name | Download |
|---|---|
| X-Ring Overview (EN) | Download |
